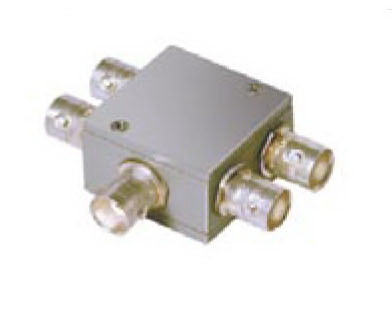

ZFSC-4-2-75-1 Сплиттер

Описание Техническое описание на ZFSC-4-2-75-1 Сплиттер : 4 Way-0° Parameter Min. Typ. Max. Units Frequency 200 800 MHz Isolation 200 - 800 MHz 20 25 dB Insertion Loss Above 6.0 dB 200 - 800 MHz 0.80 1.60 dB Phase Unbalance 200 - 800 MHz 4.000 deg. Amplitude Unbalance 200 - 800 MHz 0.123 0.200 dB VSWR SUM Port 1.34 (:1) OUT Ports 1.38 (:1) Notes: Matched power rating: 1 Watt. Internal load dissipation: 0.25 Watt. Denotes 75 Ohm model, for coax connector models 75 Ohm BNC connectors are standard. Up to 15V and 15mA DC may be passed from input to all outputs . Производитель : Mini Circuits
