- Описание
-
Описание:

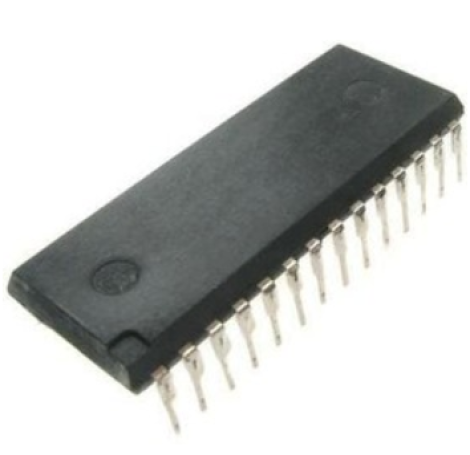

DSPIC30F2010-30I/SP | Microchip | Микросхема
Технические характеристики: DSPIC30F2010-30I/SP
DSPIC30F2010-30I/SP, Микросхема МК DSC 12K Flash 30МГц SDIP28
Производитель: Microchip
Ориентировочные сроки поставки: 5-8 недель.
Точные сроки и цену уточняйте у наших менеджеров.
Артикул по производителю:
DSPIC30F2010-30I/SP
Технические данные:
Base Product Number DSPIC30F2010 -> Connectivity IВІC, SPI, UART/USART Core Processor dsPIC Core Size 16-Bit Data Converters A/D 6x10b ECCN 3A991A2 EEPROM Size 1K x 8 Errata http://www.microchip.com/mymicrochip/filehandler.a HTSUS 8542.31.0001 Moisture Sensitivity Level (MSL) 1 (Unlimited) Mounting Type Through Hole Number of I/O 20 Operating Temperature -40В°C ~ 85В°C (TA) Oscillator Type Internal Package Tube Package / Case 28-DIP (0.300"", 7.62mm) PCN Assembly/Origin http://www.microchip.com/mymicrochip/NotificationD PCN Packaging http://www.microchip.com/mymicrochip/NotificationD Peripherals Brown-out Detect/Reset, Motor Control PWM, QEI, PO Program Memory Size 12KB (4K x 24) Program Memory Type FLASH RAM Size 512 x 8 REACH Status REACH Unaffected RoHS Status ROHS3 Compliant Series dsPICв„ў 30F -> Speed 30 MIPs Supplier Device Package 28-SPDIP Voltage - Supply (Vcc/Vdd) 2.5V ~ 5.5V ADC Channels 6 ADC Resolution 10bit ADCs 6x10 bit Data Bus Width 16bit Device Million Instructions per Second 30MIPS Instruction Set Architecture RISC Maximum Frequency 30MIPS Maximum Operating Temperature +85 °C Minimum Operating Temperature -40 °C Number of ADC Units 1 Number of CAN Channels 0 Number of Ethernet Channels 0 Number of I2C Channels 1 Number of LIN Channels 0 Number of PCI Channels 0 Number of PWM Units 3 Number of SPI Channels 1 Number of Timers 3 Number of UART Channels 1 Number of USART Channels 0 Package Type SPDIP Pin Count 28 Pulse Width Modulation 1(6 Channel)(Motor Control), 2(16 bit) PWM Channels 6 PWM Resolution 16bit Timer Resolution 16bit Timers 3x16 bit Typical Operating Supply Voltage 2.5 to 5.5 V USB Channels 0 Width 0.295in Brand: Microchip Technology Core: dsPIC30F Data Bus Width: 16 bit Data RAM Size: 512 B Data ROM Size: 1024 B Factory Pack Quantity: Factory Pack Quantity: 15 Instruction Type: Fixed/Floating Point Interface Type: I2C, SPI, UART Manufacturer: Microchip Maximum Clock Frequency: 40 MHz Maximum Operating Temperature: +85 C Minimum Operating Temperature: -40 C Mounting Style: Through Hole Number of Cores: 1 Core Number of I/Os: 20 I/O Number of Timers/Counters: 3 Timer Operating Supply Voltage: 2.5 V to 5.5 V Package / Case: DIP-28 Packaging: Tube Processor Series: dsPIC30F Product Category: Digital Signal Processors & Controllers-DSP, DSC Product Type: DSP-Digital Signal Processors & Controllers Product: DSCs Program Memory Size: 12 kB Program Memory Type: Flash Series: dsPIC30F2010 Subcategory: Embedded Processors & Controllers Supply Voltage - Min: 2.5 V Tradename: dsPIC Вес, г 2.14 - Аксессуары и аналоги
-
