Обзор продукта:

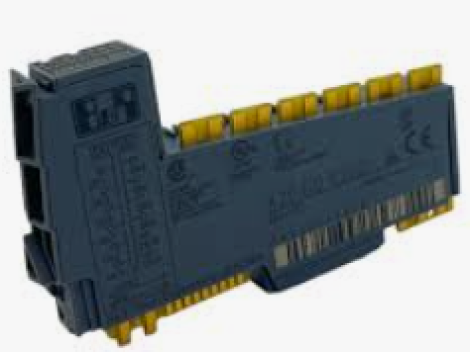

X20D09322 | B&R | Модуль
Технические характеристики и спецификация: X20D09322
Автоматизация
Серия и данные по производителю: -
Производитель: Список .
Каталог: Полный каталог производителей .
Сроки поставки: 5-8 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы B&R по каталогу и аналогом:
X20D09322
Технические данные:
B&R ID code 0x1B9A Status indicators I/O function per channel, operating state, module status Diagnostics Module run/error Yes, using LED status indicator and software Outputs Yes, using LED status indicator and software (output error status) Power consumption Bus 0.26 W Internal I/O 1.15 W Additional power dissipation caused by actuators (resistive) [W] +0.63 Certifications CE Yes UKCA Yes CRA (Cyber Resilience Act) In preparation ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083XUL cULus E115267
Industrial control equipmentHazLoc cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5DNV Temperature: B(0 to 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck)CCS Yes LR ENV1 KR Yes ABS Yes BV EC33B
Temperature: 5 - 55°C
Vibration: 4 g
EMC: Bridge and open deckKC Yes Digital outputs
Variant Current-sourcing FET Nominal voltage 24 VDC Switching voltage 24 VDC -15% / +20% Nominal output current 0.5 A Total nominal current 6 A Connection type 1-wire connections Output circuit Source Output protection Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current")
Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads")Diagnostic status Output monitoring with 10 ms delay Leakage current when the output is switched off 5 µA RDS(on) 210 mΩ Peak short-circuit current <12 A Switch-on in the event of overload shutdown or short-circuit shutdown Approx. 10 ms (depends on the module temperature) Switching delay 0 → 1 <300 µs 1 → 0 <300 µs Switching frequency Resistive load Max. 500 Hz Inductive load See section "Switching inductive loads". Braking voltage when switching off inductive loads Typ. 50 VDC Insulation voltage between channel and bus 500 Veff Electrical properties
Electrical isolation Channel isolated from bus
Channel not isolated from channel and I/O power supplyOperating conditions
Mounting orientation Horizontal Yes Vertical Yes Installation elevation above sea level 0 to 2000 m No limitation >2000 m Reduction of ambient temperature by 0.5°C per 100 m Degree of protection per EN 60529 IP20 Ambient conditions
Temperature Operation Horizontal mounting orientation -25 to 60°C Vertical mounting orientation -25 to 50°C Derating See section "Derating". Storage -40 to 85°C Transport -40 to 85°C Relative humidity Operation 5 to 95%, non-condensing Storage 5 to 95%, non-condensing Transport 5 to 95%, non-condensing Mechanical properties
Note Order 1x terminal block X20TB12 separately.
Order 1x bus module X20BM11 separately.Pitch 12.5+0.2mm - Аксессуары и аналоги
-
