Обзор продукта:

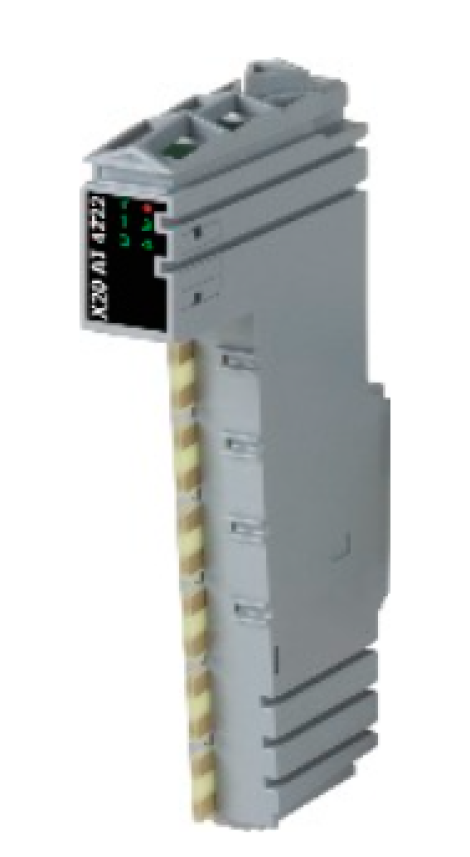

X20AT4222 | B&R | Модуль
Технические характеристики и спецификация: X20AT4222
Модуль температурных входов
B&R X20 temperature input unit for X20 terminal block, 12-pin, 4 x X20 systems
Автоматизация
Серия и данные по производителю: -
Производитель: Список .
Каталог: Полный каталог производителей .
Сроки поставки: 5-8 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы B&R по каталогу и аналогом:
X20AT4222
Технические данные:
B&R ID code 0x1BA7 Status indicators I/O function per channel, operating state, module status Diagnostics Module run/error Yes, using LED status indicator and software Inputs Yes, using LED status indicator and software Power consumption Bus 0.01 W Internal I/O 1.1 W Additional power dissipation caused by actuators (resistive) [W] - Certifications CE Yes UKCA Yes CRA (Cyber Resilience Act) In preparation ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083XUL cULus E115267
Industrial control equipmentHazLoc cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5DNV Temperature: B(0 to 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck)CCS Yes LR ENV1 KR Yes ABS Yes BV EC33B
Temperature: 5 - 55°C
Vibration: 4 g
EMC: Bridge and open deckKC Yes Resistance measurement temperature inputs
Input Resistance measurement with constant current supply for 2- or 3-wire connections Digital converter resolution 16-bit Filter time Configurable between 1 ms and 66.7 ms Conversion time 1 channel 20 ms with 50 Hz filter 2 - 4 channels 40 ms per channel with 50 Hz filter Conversion procedure Sigma-delta Output format INT or UINT for resistance measurement Sensor Sensor type Configurable per channel Pt100 -200 to 850°C Pt1000 -200 to 850°C Resistance measurement range 0.1 to 4500 Ω / 0.05 to 2250 Ω Input filter First-order low-pass filter / cutoff frequency 500 Hz Sensor standard EN 60751 Common-mode range >0.7 V Insulation voltage between channel and bus 500 Veff Linearization method Internal Measuring current 250 µA ±1.25% Reference 4530 Ω ±0.1% Permissible input signal Short-term max. ±30 V Max. error at 25°C - Аксессуары и аналоги
-
