Обзор продукта:

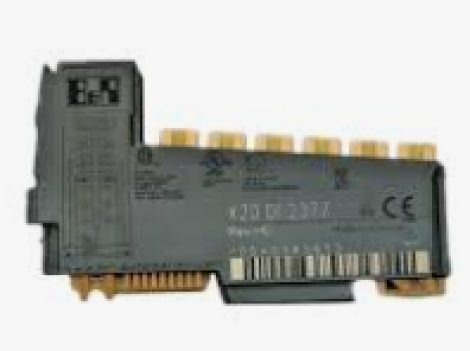

X20DI2377 | B&R | Модуль
Технические характеристики и спецификация:
B&R X20 Digital Input Module for X20 Series, 2 x Voltage and Current Input, X20 Systems Voltage and Current Output 24 V
Автоматизация
Серия и данные по производителю: -
Производитель: Список .
Каталог: Полный каталог производителей .
Сроки поставки: 5-8 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы B&R по каталогу и аналогом:
X20DI2377
Технические данные:
I/O module 2 digital inputs 24 VDC for 3-wire connections, special functions General information
B&R ID code 0x1B8E Status indicators I/O function per channel, operating state, module status Diagnostics Module run/error Yes, using LED status indicator and software Power consumption Bus 0.15 W Internal I/O 0.82 W Additional power dissipation caused by actuators (resistive) [W] - Certifications CE Yes UKCA Yes CRA (Cyber Resilience Act) In preparation ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083XUL cULus E115267
Industrial control equipmentHazLoc cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5DNV Temperature: B(0 to 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck)CCS Yes LR ENV1 KR Yes ABS Yes BV EC33B
Temperature: 5 - 55°C
Vibration: 4 g
EMC: Bridge and open deckKC Yes Digital inputs
Nominal voltage 24 VDC Input characteristics per EN 61131-2 Type 1 Input voltage 24 VDC -15% / +20% Input current at 24 VDC Typ. 10.5 mA Input circuit Sink Input filter Hardware ≤10 μs Software Default 0 ms, configurable between 0 and 25 ms in 0.2 ms intervals Connection type 3-wire connections Input resistance Typ. 2.23 kΩ Additional functions 50 kHz event counting, gate measurement Switching threshold Low <5 VDC High >15 VDC Insulation voltage between channel and bus 500 Veff Event counters
Quantity 2 Signal form Square wave pulse Evaluation Each positive edge, cyclic counter Input frequency Max. 50 kHz Counter 1 Input 1 Counter 2 Input 2 Counter frequency Max. 50 kHz Counter size 16-bit Gate time measurement
Number of gate time measurements 1 Signal form Square wave pulse Evaluation Positive edge - Negative edge Counter frequency Internal 48 MHz, 24 MHz, 12 MHz, 6 MHz, 3 MHz, 1.5 MHz, 750 kHz, 375 kHz, 187.5 kHz Counter size 16-bit Length of pause between pulses ≥100 µs Pulse length ≥20 µs Supported inputs Input 1 or input 2 Sensor power supply
Power consumption Max. 12 W Voltage Module power supply minus voltage drop for short-circuit protection Voltage drop for short-circuit protection at 500 mA Max. 2 VDC Summation current 0.5 A Short-circuit proof Yes Electrical properties
Electrical isolation Channel isolated from bus
Channel not isolated from channelOperating conditions
Mounting orientation Horizontal Yes Vertical Yes Installation elevation above sea level 0 to 2000 m No limitation >2000 m Reduction of ambient temperature by 0.5°C per 100 m Degree of protection per EN 60529 IP20 Ambient conditions
Temperature Operation Horizontal mounting orientation -25 to 60°C Vertical mounting orientation -25 to 50°C Derating - Storage -40 to 85°C Transport -40 to 85°C Relative humidity Operation 5 to 95%, non-condensing Storage 5 to 95%, non-condensing Transport 5 to 95%, non-condensing Mechanical properties
Note Order 1x terminal block X20TB06 or X20TB12 separately.
Order 1x bus module X20BM11 separately.Pitch 12.5+0.2mm - Аксессуары и аналоги
-
