Обзор продукта:

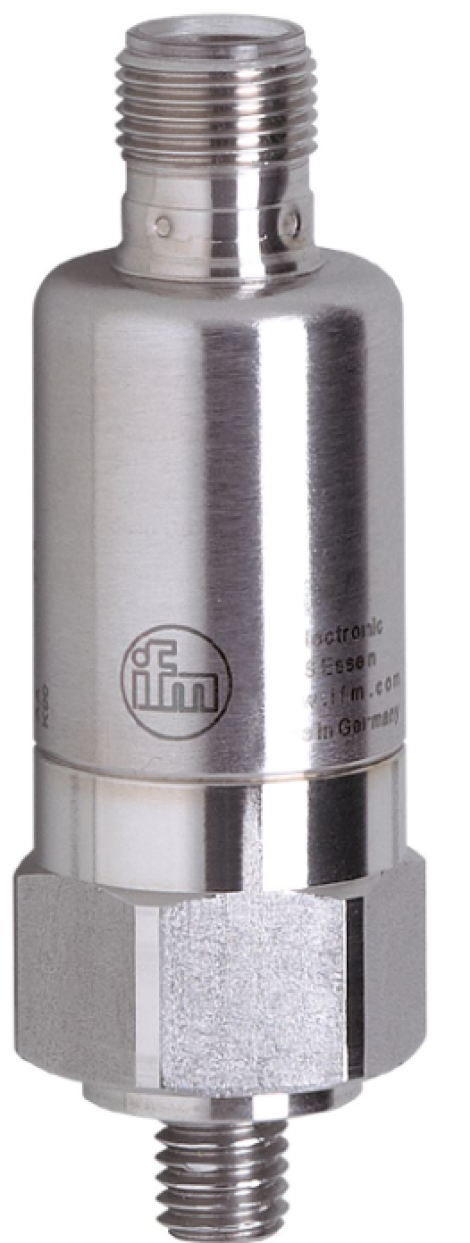

VTV122 | ifm Efector | Датчик
Технические характеристики и спецификация: VTV122
VIBRATION TRANSMITTER; ANALOGUE;
Датчики движения
Серия продукта: Vibration
Производитель: ifm Efector .
Каталог: Полный каталог продукции ifm Efector .
Сроки поставки: 5-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы ifm Efector по каталогу и аналогом:
VTV122
Product features
Vibration measurement range [mm/s] 0...25; (RMS) Frequency range [Hz] 10...1000 App
App Vibration transducer according to ISO 10816 Electrical data
Supply voltage [V] 9.6...32 DC Protection class III Sensor type Microelectromechanical System (MEMS) Inputs / outputs
Total number of inputs and outputs 1 Exits
Analog current output [mA] 4...20 Max load [Ω] < (Ub - 9.6V) x 50; Ub = 24V: 720 Measurement/setting range
Vibration measurement range [mm/s] 0...25; (RMS) Frequency range [Hz] 10...1000 Number of measurement axes 1 Accuracy/deviation
Measurement error [% of final value] < ± 3 Repeatability < 0.5; (% of final value) Linearity deviation 0.25% Working conditions
Ambient temperature [°C] -30...125 Note on ambient temperature UL applications: < 80 °C Storage temperature [°C] -30...125 Security IP 67; IP 68; IP 69K Tests / Approvals
EMC EN 61000-6-2 EN 61000-6-3 Shock resistance DIN EN 60068-2-27 50 g 11 ms 500 g 1 ms Vibration resistance DIN EN 60068-2-6 20g / 10...3000 Hz MTTF [years] 868 Mechanical data
Weight [g] 123.5 Mounting type screw Material stainless steel (1.4404 / 316L) Tightening torque [Nm] 8 Accessories
Supplied items Screw: 1 x (1/4"-28 UNF / M8 x 1.25mm) screw: 1 x (1/4"-28 UNF) Comments
