Описание:

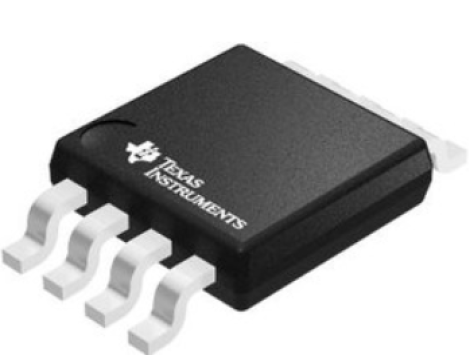

THS4551IDGKR | Texas Instruments | Усилитель
Технические характеристики: THS4551IDGKR
THS4551IDGKR, Усилители операционные, дифференциальные, инструментальные VSSOP8 (8048525311)
Линейные - усилители - приборы, операционные усилители , буферные усилители
Производитель: Texas Instruments
Ориентировочные сроки поставки: 5-8 недель.
Точные сроки и цену уточняйте у наших менеджеров.
Артикул по производителю:
THS4551IDGKR
Технические данные:
Automotive No ECCN (US) EAR99 EDA / CAD Models THS4551IDGKR by Ultra Librarian EU RoHS Compliant Lead Shape Gull-wing Maximum Input Bias Current (uA) 1.5@5V Maximum Input Offset Voltage (mV) 0.175@5V Maximum Input Resistance (MOhm) 0.1(Typ)@5V Maximum Operating Supply Voltage (V) 5.4 Maximum Operating Temperature (°C) 125 Maximum Single Supply Voltage (V) 5.4 Maximum Supply Voltage Range (V) 5 to 7 Maximum Voltage Gain (dB) 125(Typ) Maximum Voltage Gain Range (dB) >=125 Minimum CMRR (dB) 93 Minimum CMRR Range (dB) 85 to 95 Minimum Operating Temperature (°C) -40 Minimum PSRR (dB) 93 Minimum Single Supply Voltage (V) 2.7 Mounting Surface Mount Number of Channels per Chip 1 Number of Elements per Chip 1 Output Type Differential Package Length 3.1(Max) Package Width 3.1(Max) Packaging Tape and Reel Part Status Active PCB changed 8 Pin Count 8 Power Supply Type Single PPAP No Rail to Rail Rail to Rail Output Standard Package Name SO Supplier Package VSSOP Type Differential Amplifier Typical Gain Bandwidth Product (MHz) 135 Typical Output Current (mA) 65@5V Typical Single Supply Voltage (V) 5 3 dB Bandwidth: 150 MHz Amplifier Type: Differential Brand: Texas Instruments CMRR - Common Mode Rejection Ratio: 110 dB en - Input Voltage Noise Density: 3.3 nV/sqrt Hz Factory Pack Quantity: 2500 Features: Small Size, Shutdown Gain V/V: 999 mV/V GBP - Gain Bandwidth Product: 135 MHz Ib - Input Bias Current: 1.5 uA In - Input Noise Current Density: 500 fA/sqrt Hz Input Type: Rail-to-Rail Ios - Input Offset Current: 10 nA Manufacturer: Texas Instruments Maximum Operating Temperature: +125 C Minimum Operating Temperature: -40 C Moisture Sensitive: Yes Mounting Style: SMD/SMT Number of Channels: 1 Channel Operating Supply Current: 1.35 mA Output Current per Channel: 45 mA Output Type: Rail-to-Rail Package/Case: VSSOP-8 Product Category: Differential Amplifiers Product Type: Differential Amplifiers Product: Differential Amplifiers PSRR - Power Supply Rejection Ratio: 110 dB Settling Time: 50 ns Shutdown: Shutdown Subcategory: Amplifier ICs Supply Voltage - Max: 5.4 V Supply Voltage - Min: 2.7 V Vos - Input Offset Voltage: 175 uV Вес, г 0.02 - Аксессуары и аналоги
-
